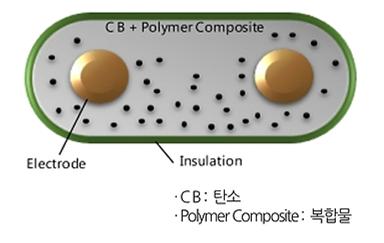

Core Technology of Self-Regulating Heating Cable

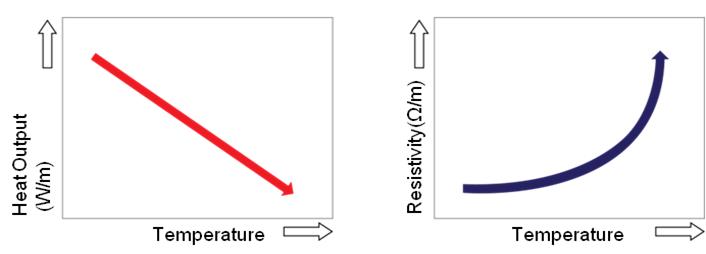

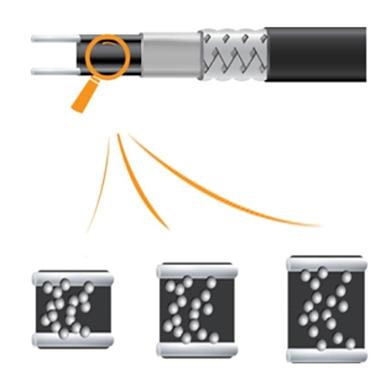

Self-regulating heating cable internal heating element is a characteristic of conductive carbon composite, which changes the resistance and output value depending on the ambient and the temperature of the installation structure, and maintains the required temperature.

• COLD
• WARM
• HOT

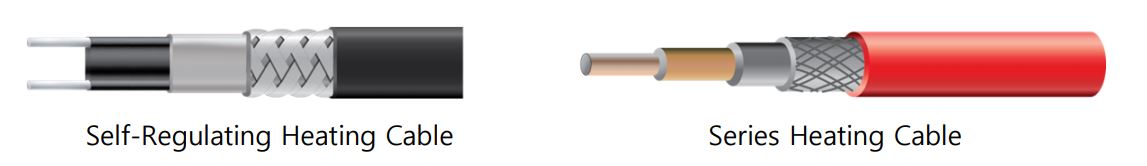

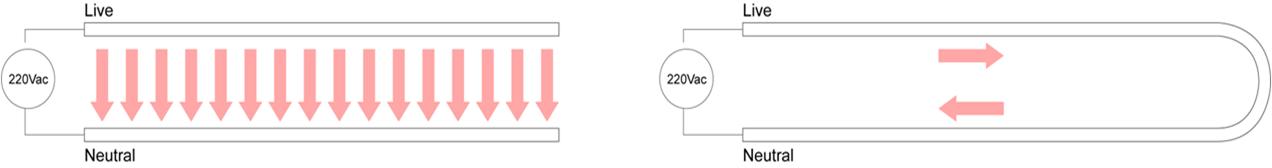

Comparison of Heating Cable Products

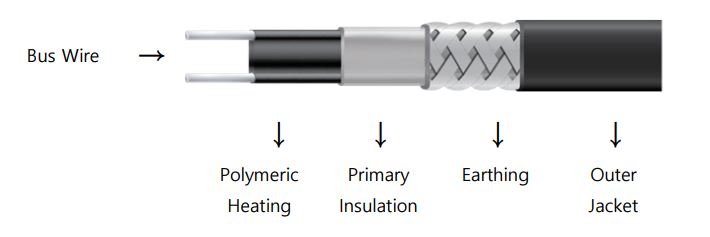

Structure of Self-Regulating Heating Cable

※ Actual colors will vary depending on the coating material

Characteristics of Self-Regulating Heating Cable

• No Possibility of overheat or burning due to fire
• It is economical to control the amount of heat by itself according to the ambient temperature.
• Can be cut according to site conditions
• Excellent energy dissipation due to excellent heat transfer
• It is flexible and easy to construct and low maintenance cost.
• Easy circuit branching and power connection.

Self-Regulating Heating Cables

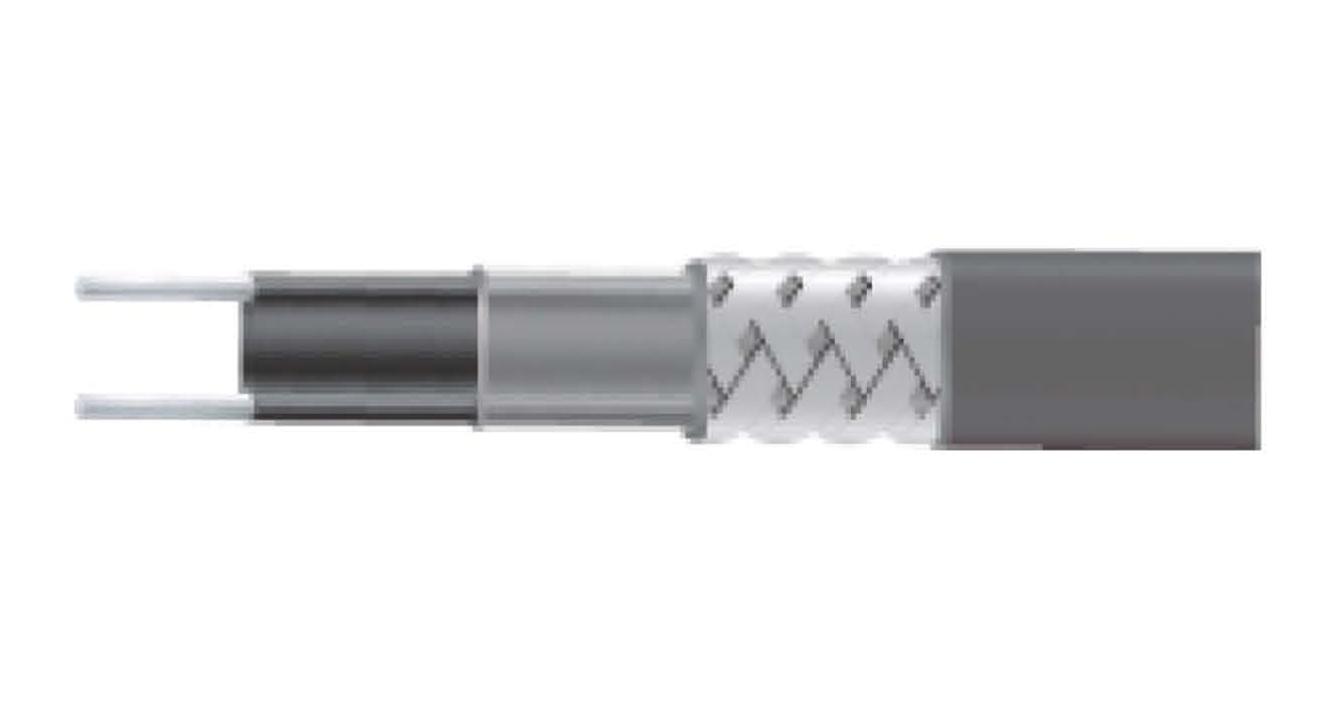

FBL Self-Regulating Heating Cable

The FBL family of self-regulating heating cables is capable of maintaining process temperatures up to 65℃ and used to prevent freezing of pipes and tanks.

• Max. maintain or continuous temp. 65℃ (Power On)
• Max. continuous exposure temp. 85℃ (Power Off)
• Rated output 10, 16, 24, 30 W/M at 10℃
• T-Rating T6
• Supply Voltage 100~120 , 200~277 Vac
• Maintain process piping temperature (Low temperature)

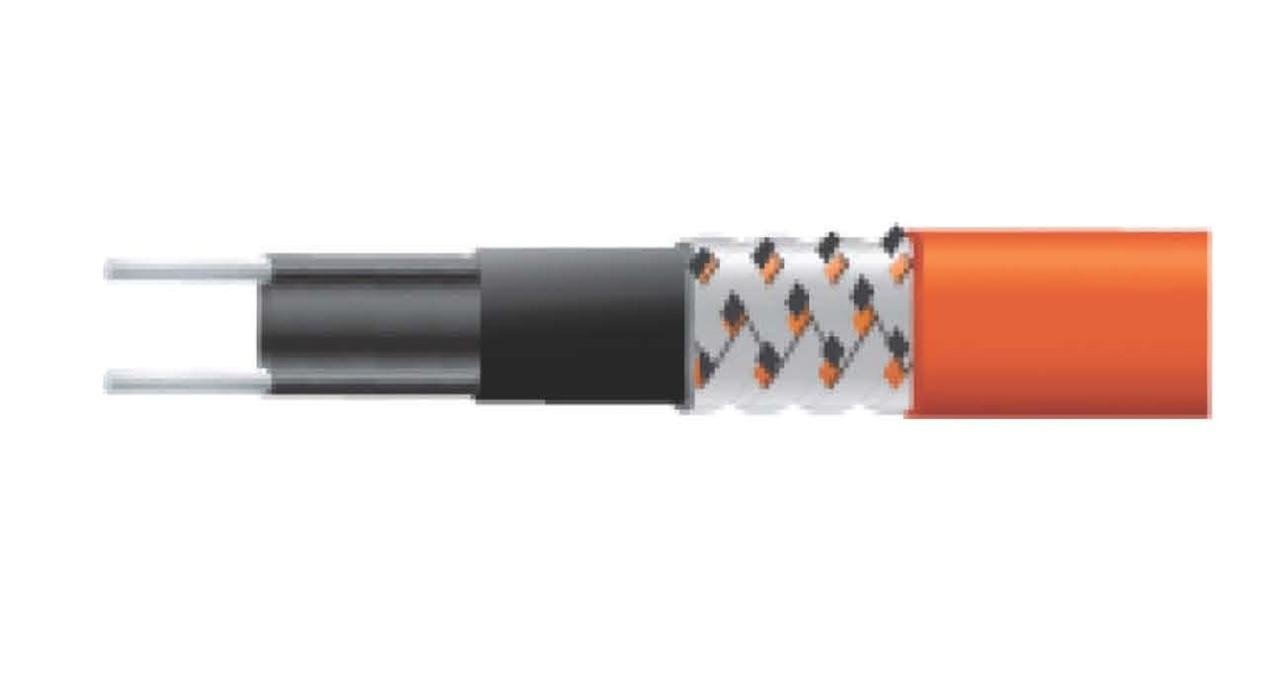

FBH Self-Regulating Heating Cable

The FBH family of self-regulating heating cables is capable of maintaining process temperatures up to 110℃ and used to prevent freezing of a large pipe of plants and, ships, tanks.

• Max. maintain or continuous temp 110℃ (Power On)
• Max. continuous exposure temp 135℃ (Power Off)
• Rated output 15, 30, 45, 60 W/M at 10℃
• T-Rating T4
• Supply Voltage 100~120 , 200~277 Vac
• Maintain process piping temperature (Medium temperature)

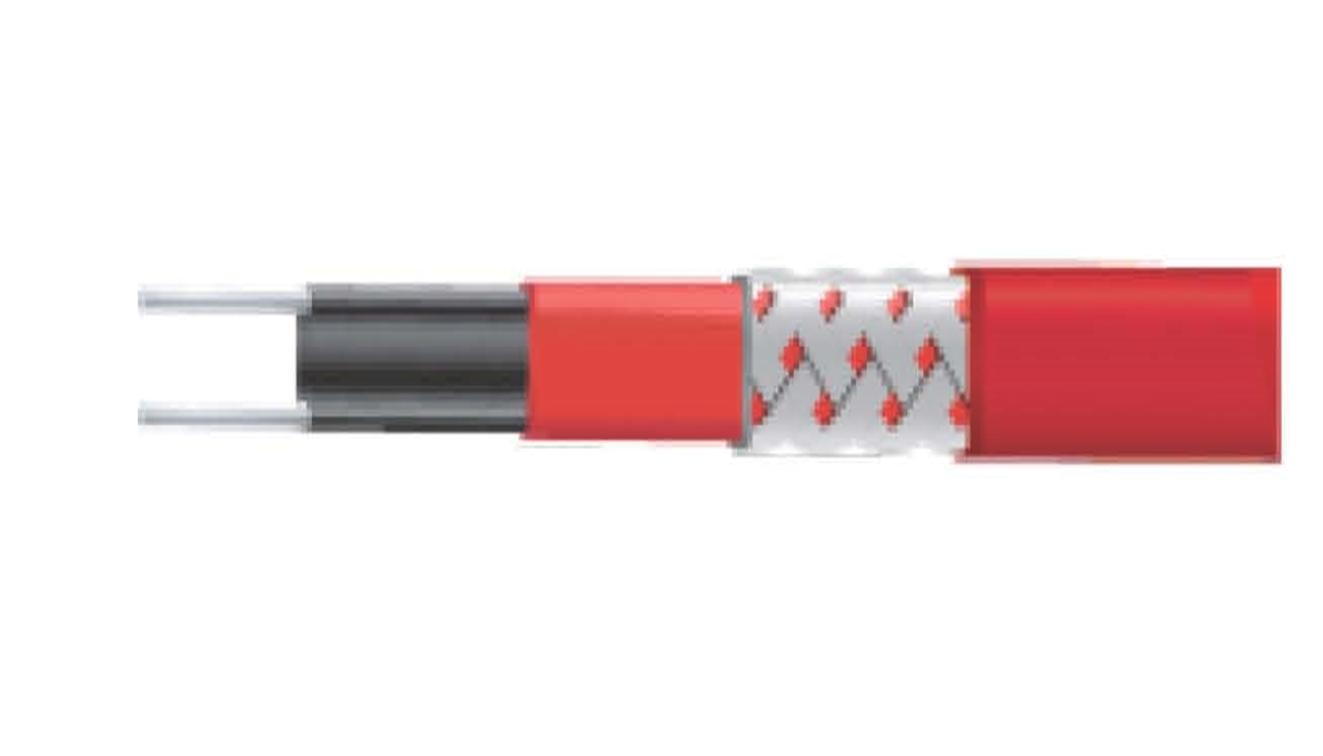

FBX Self-Regulating Heating Cable

The FBX Family of self-regulating heating cables is capable of maintaining process temperatures up to 150℃ and used to prevent freezing of a large pipe of plants and vessels, tanks

• Max. maintain or continuous temp 150℃ (Power On)
• Max. continuous exposure temp 200℃ (Power Off)
• Rated output 15, 30, 45, 60 W/M at 10℃
• T-Rating T2, T3
• Supply Voltage 100~120 , 200~277 Vac
• Preventing steam purge piping from freezing
• Maintain process piping temperature (High temperature)

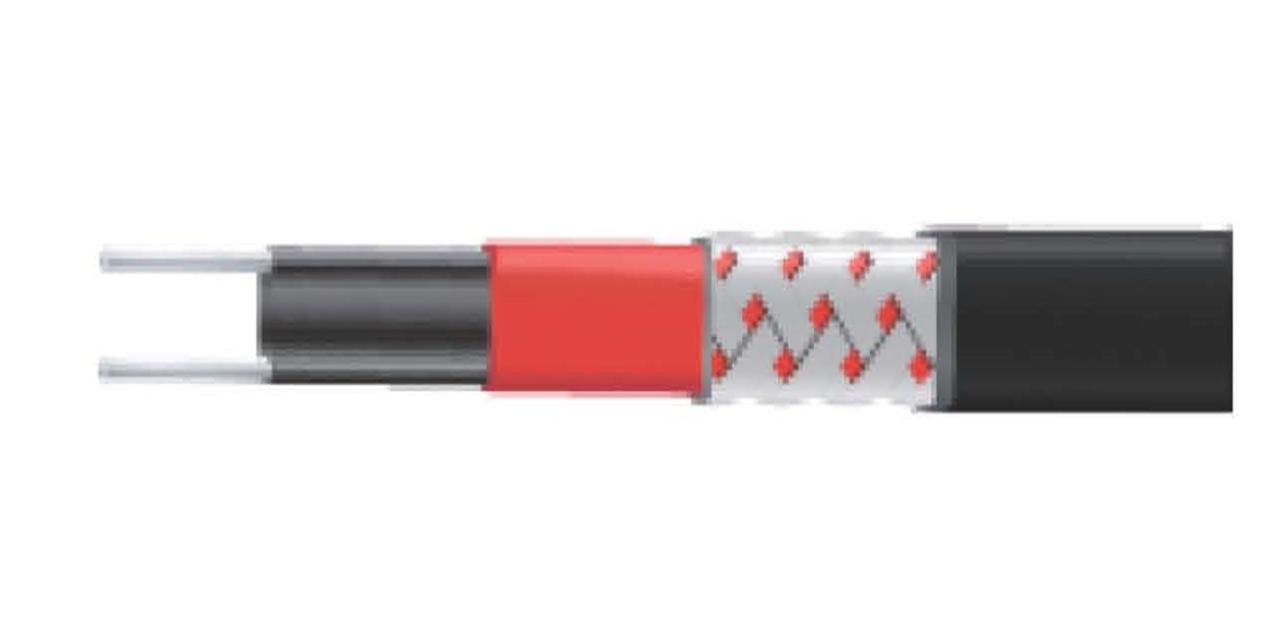

FBZ Self-Regulating Heating Cable

The FBZ family of self-regulating heating cables is capable of maintaining process temperatures up to 150℃ and used to prevent freezing of a large pipe of plants and vessels, tanks. Also, it used to protects the freezing of various pipelines under steam purge and is used to maintain the temperature of petrochemicals and gas plants.

• Max. maintain or continuous temp 200℃ (Power On)
• Max. continuous exposure temp 240℃ (Power Off)
• Rated output 15, 30, 45, 60 W/M at 10℃
• T-Rating T2, T3
• Supply Voltage 100~120 , 200~277 Vac
• Preventing steam purge piping from freezing
• Maintain process piping temperature (High temperature)

※ Actual colors will vary depending on the coating material
